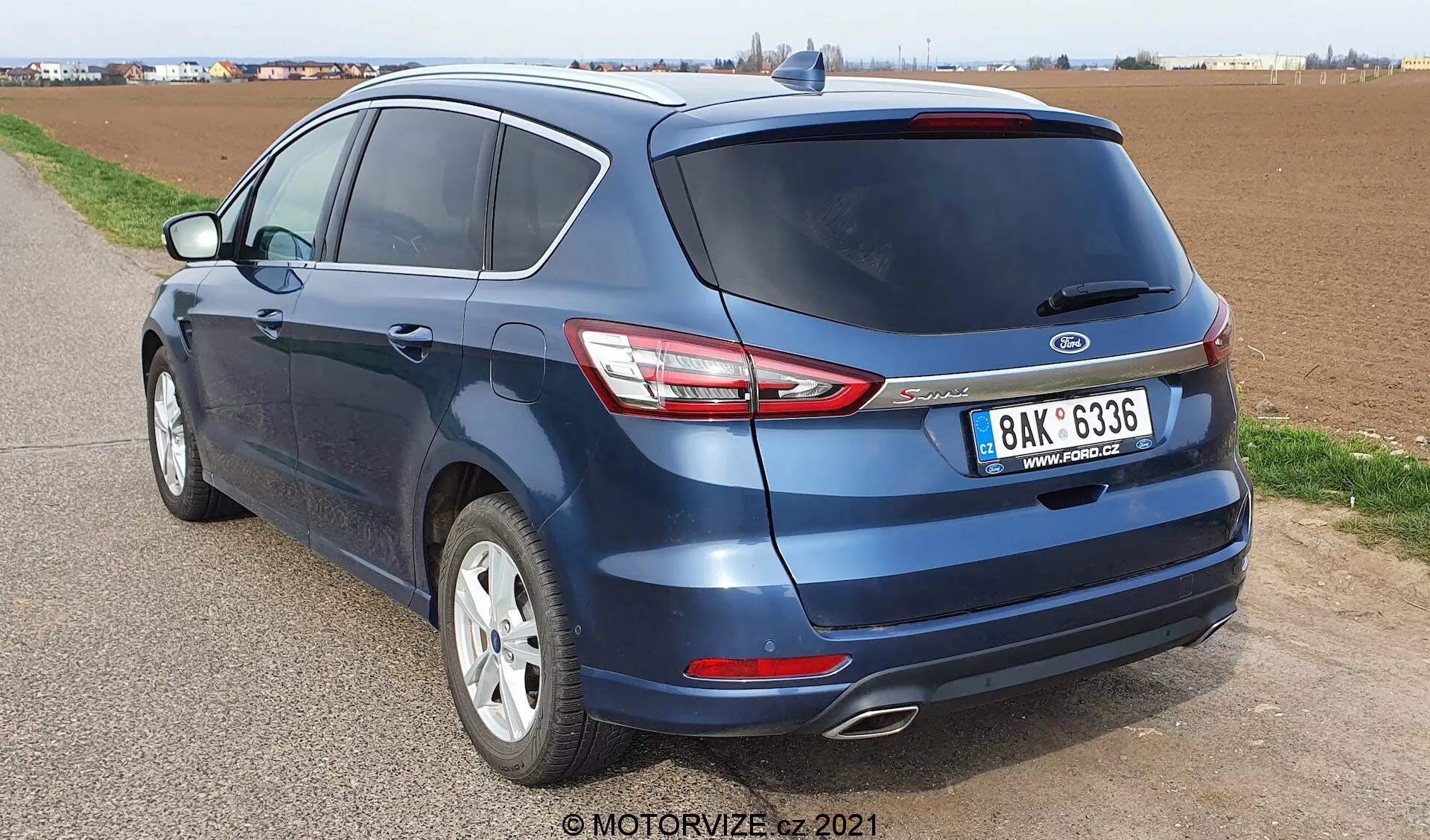

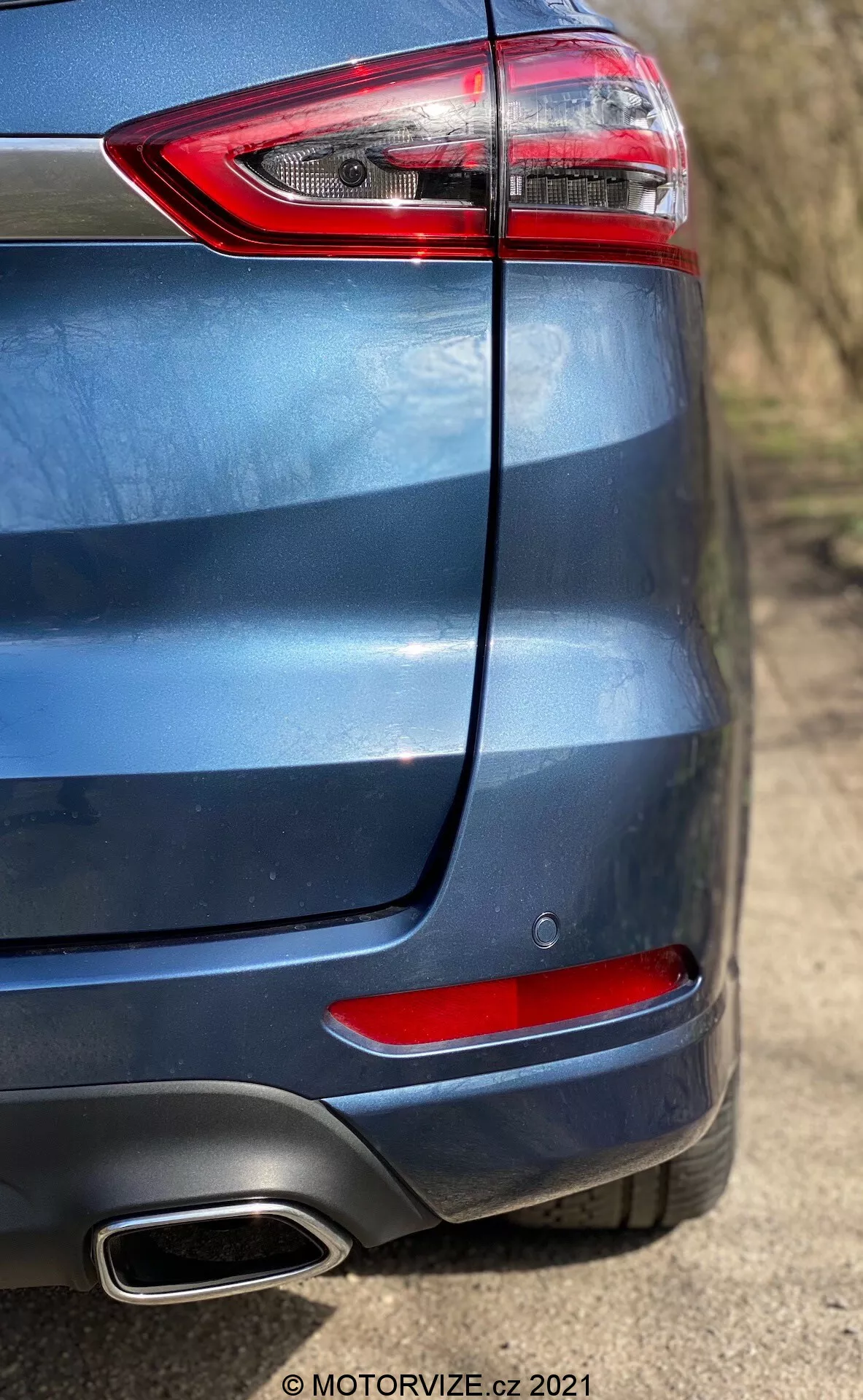

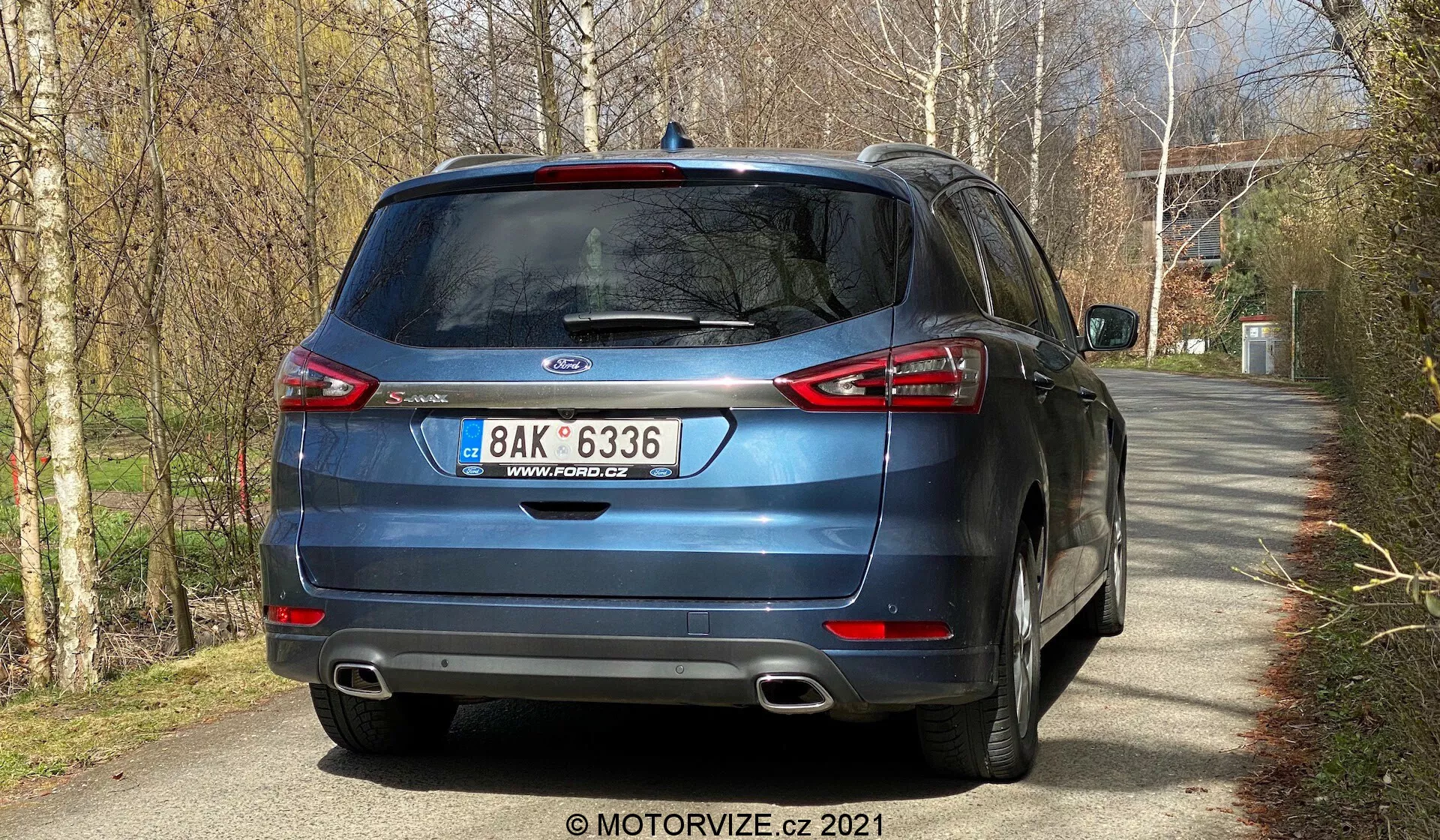

Ford S-MAX (2015 - 2019)

Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1
Sadržaj:

Specifikacije modela

Informacije o modelu

Model name
Ford S-MAX
Generacija
WA6
Production years
2015 - 2019
Vrata
5
5

Dimenzije

Dužina
4796 mm
4,527.0
Avg
5,080.0
Higher is better
Međuosovinski razmak
2850 mm
2,786.0
Avg
3,124.0
Higher is better
Širina
1916 mm
1,784.0
Avg
2,050.0
Higher is better
Visina
1655 mm
1,655.0
Avg
2,254.0
Higher is better
Visina od tla
148 mm
148.0
Avg
207.0
Higher is better
Promjer okretanja
11 m
11.0
Avg
12.0
Lower is better
Annotated Image

Prtljažnik/interijer

Prostor prtljažnika (straga sjedala preklopljena, od dna do krova)
2020 l
1,807.0
Avg
4,700.0
Higher is better
Sjedala
5
5
Maks. sjedišta
7
7
Vrata
5
5

Motori/pogonski sklop

Cilindri
4
3.0
Avg
4.0
Higher is better
Maks. brzina
180 - 226 km/h
148.0
Avg
200.0
Higher is better
Obrtni moment
240 - 500 Nm
175.0
Avg
310.0
Higher is better
Snaga
88 - 177 kW
81.0
Avg
130.0
Higher is better
Zapremina motora
1498 - 1999 ccm
999.0
Avg
1,997.0
Higher is better
Ubrzanje 0-100km/h
8 - 13 s
8.0
Avg
16.0
Higher is better

Potrošnja/ekologija

Veličina spremnika
61 - 70 l
50.0
Avg
81.0
Higher is better
Kombinirana potrošnja (NEDC)
5 - 7 l/100km
5.0
Avg
6.0
Higher is better
Potrošnja u gradu (NEDC)
5 - 10 l/100km
5.0
Avg
8.0
Higher is better
Kombinirana potrošnja (WLTP)
6 - 8 l/100km
5.0
Avg
22.0
Higher is better
Emisija CO2 (WLTP)
157 - 195 g/km
129.0
Avg
185.0
Higher is better
Prazna težina (EU)
1645 - 1984 kg
1,280.0
Avg
2,041.0
Higher is better

Vlačenje

Maks. opterećenje vučne kuke
90 kg
75.0
Avg
100.0
Higher is better
Maks. opterećenje krova
75 kg
75.0
Avg
200.0
Higher is better
Prikolica s kočnicama
1500 - 2000 kg
400.0
Avg
2,500.0
Higher is better
Prikolica (bez kočnica)
750 kg
400.0
Avg
750.0
Higher is better

Motori (S-MAX)

Filtriraj prema gorivu:
Diesel
MAN Fwd
2.0 TDCi Start/Stopp Trend
Engine & power
Snaga
88 kW / 120 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
13 s
Maks. brzina
183 km/h
Torque & rpm
Obrtni moment
310 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
1750 RPM
Potrošnja u gradu (NEDC)
5 l/100km
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
MAN Fwd
2.0 EcoBlue Trend
Engine & power
Snaga
88 kW / 120 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
12 s
Maks. brzina
180 km/h
Torque & rpm
Obrtni moment
340 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
157 g/km
Maksimalni okretni moment pri RPM
1750 RPM
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
MAN Fwd
2.0 TDCi Start/Stopp Trend
Engine & power
Snaga
110 kW / 150 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
10 s
Maks. brzina
198 km/h
Torque & rpm
Obrtni moment
350 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
1750 RPM
Potrošnja u gradu (NEDC)
5 l/100km
Technical details
Maksimalna snaga pri RPM
3750 RPM
Ubrizgavanje goriva
Common Rail
Diesel
MAN Fwd
2.0 EcoBlue Trend
Engine & power
Snaga
110 kW / 150 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
10 s
Maks. brzina
198 km/h
Torque & rpm
Obrtni moment
370 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
157 g/km
Maksimalni okretni moment pri RPM
2000 RPM
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 TDCi Start/Stopp Trend Powershift
Engine & power
Snaga
110 kW / 150 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
10 s
Maks. brzina
196 km/h
Torque & rpm
Obrtni moment
350 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
1750 RPM
Potrošnja u gradu (NEDC)
5 l/100km
Technical details
Maksimalna snaga pri RPM
3750 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 EcoBlue Trend
Engine & power
Snaga
110 kW / 150 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
10 s
Maks. brzina
196 km/h
Torque & rpm
Obrtni moment
370 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
170 g/km
Maksimalni okretni moment pri RPM
2000 RPM
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Gasoline
MAN Fwd
1.5 EcoBoost Start/Stopp Trend
Engine & power
Snaga
118 kW / 160 HP
Capacity
1.5L (1,498 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
9 s
Maks. brzina
200 km/h
Torque & rpm
Obrtni moment
240 Nm
Consumption
Kombinirana potrošnja (NEDC)
6 l/100km
Maksimalni okretni moment pri RPM
1750 RPM
Potrošnja u gradu (NEDC)
8 l/100km
Technical details
Maksimalna snaga pri RPM
5700 RPM
Ubrizgavanje goriva
Izravno ubrizgavanje
Gasoline
MAN Fwd
1.5 EcoBoost Start/Stopp Trend
Engine & power
Snaga
121 kW / 165 HP
Capacity
1.5L (1,499 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
10 s
Maks. brzina
203 km/h
Torque & rpm
Obrtni moment
242 Nm
Consumption
Kombinirana potrošnja (WLTP)
8 l/100km
Emissions
Emisija CO2 (WLTP)
191 g/km
Maksimalni okretni moment pri RPM
1600 RPM
Technical details
Maksimalna snaga pri RPM
5500 RPM
Ubrizgavanje goriva
Izravno ubrizgavanje
Diesel
MAN Fwd
2.0 TDCi Start/Stopp Trend
Engine & power
Snaga
132 kW / 180 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
9 s
Maks. brzina
211 km/h
Torque & rpm
Obrtni moment
400 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
2000 RPM
Potrošnja u gradu (NEDC)
5 l/100km
Technical details
Maksimalna snaga pri RPM
3750 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 TDCi Start/Stopp Trend Powershift
Engine & power
Snaga
132 kW / 180 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
9 s
Maks. brzina
208 km/h
Torque & rpm
Obrtni moment
400 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
2000 RPM
Potrošnja u gradu (NEDC)
5 l/100km
Technical details
Maksimalna snaga pri RPM
3750 RPM
Ubrizgavanje goriva
Common Rail
Diesel
MAN Fwd
2.0 EcoBlue Trend
Engine & power
Snaga
140 kW / 190 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
9 s
Maks. brzina
211 km/h
Torque & rpm
Obrtni moment
400 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
157 g/km
Maksimalni okretni moment pri RPM
2000 RPM
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 EcoBlue Trend
Engine & power
Snaga
140 kW / 190 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
9 s
Maks. brzina
208 km/h
Torque & rpm
Obrtni moment
400 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
169 g/km
Maksimalni okretni moment pri RPM
2000 RPM
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 TDCi Bi-Turbo Start/Stopp Titanium Powershift
Engine & power
Snaga
154 kW / 209 HP
Capacity
2.0L (1,997 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
8 s
Maks. brzina
218 km/h
Torque & rpm
Obrtni moment
450 Nm
Consumption
Kombinirana potrošnja (NEDC)
5 l/100km
Maksimalni okretni moment pri RPM
1750 RPM
Potrošnja u gradu (NEDC)
6 l/100km
Technical details
Maksimalna snaga pri RPM
3500 RPM
Ubrizgavanje goriva
Common Rail
Diesel
AUT Fwd
2.0 EcoBlue Bi-Turbo Titanium
Engine & power
Snaga
177 kW / 241 HP
Capacity
2.0L (1,995 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
8 s
Maks. brzina
218 km/h
Torque & rpm
Obrtni moment
500 Nm
Consumption
Kombinirana potrošnja (WLTP)
6 l/100km
Emissions
Emisija CO2 (WLTP)
172 g/km
Maksimalni okretni moment pri RPM
2000 RPM
Technical details
Maksimalna snaga pri RPM
4000 RPM
Ubrizgavanje goriva
Common Rail
Gasoline
AUT Fwd
2.0 EcoBoost Start/Stopp Trend Automatik
Engine & power
Snaga
177 kW / 241 HP
Capacity
2.0L (1,999 ccm)
Cilindri
4
Performance
Ubrzanje 0-100km/h
8 s
Maks. brzina
226 km/h
Torque & rpm
Obrtni moment
340 Nm
Consumption
Kombinirana potrošnja (NEDC)
7 l/100km
Maksimalni okretni moment pri RPM
1900 RPM
Potrošnja u gradu (NEDC)
10 l/100km
Technical details
Maksimalna snaga pri RPM
6000 RPM
Ubrizgavanje goriva
Izravno ubrizgavanje
Usporedi sve motore

Generacije Ford S-MAX

Body type
S-MAX I
2006 - 2010
Dužina4768 mm
Visina1658 mm
Međuosovinski razmak2850 mm
Dužina4768 mm
Body type
S-MAX I (1. Facelift)
2010 - 2015
Dužina4772 mm
Visina1658 mm
Međuosovinski razmak2850 mm
Dužina4772 mm (+4 mm)
S-MAX II
2015 - 2019
Dužina4796 mm
Visina1655 mm
Međuosovinski razmak2850 mm
Dužina4796 mm (+24 mm)
S-MAX S-MAX II (1. Facelift)
2019 - 2023
Dužina4796 mm
Visina1655 mm
Međuosovinski razmak2850 mm
Dužina4796 mm
Usporedi sve generacije

1903
1903
Ford founded
2006
2006
I je predstavljen.
2010
2010
I (1. Facelift) je uveden i zamijenio I.
2015
2015
II je uveden i zamijenio I (1. Facelift).
2019
2019
S-MAX II (1. Facelift) je uveden i zamijenio II.
2023
2023
Proizvodnja Ford S-MAX je prekinuta.

Slični automobili

VW Touran
VW Touran
vw Logo 2015 • 5T
Body type
Kombi
Dužina
4527 mm
Širina
1829 mm
Visina
1668 mm
Međuosovinski razmak
2786 mm
Boot capacity
834 l
Težina
1436 kg
Vrata
5
Usporedi
Dacia Jogger
Dacia Jogger
dacia Logo 2022 • DJF
Body type
Kombi
Dužina
4547 mm
Širina
1784 mm
Visina
1674 mm
Međuosovinski razmak
2897 mm
Boot capacity
160 l
Težina
1280 kg
Vrata
5
Usporedi
VW Nutzfahrzeuge Transporter
VW Nutzfahrzeuge Transporter
2021 • ST
Body type
Autobus
Dužina
4973 mm
Širina
1941 mm
Visina
1907 mm
Međuosovinski razmak
3124 mm
Boot capacity
469 l
Težina
1941 kg
Vrata
5
Usporedi
Fiat Ducato
Fiat Ducato
fiat Logo 2014 • ZAF 250
Body type
Autobus
Dužina
4963 mm
Širina
2050 mm
Visina
2254 mm
Međuosovinski razmak
3000 mm
Težina
2010 kg
Vrata
4
Usporedi
Renault Trafic
Renault Trafic
renault Logo 2021 • L/JL
Body type
Autobus
Dužina
5080 mm
Širina
1956 mm
Visina
1973 mm
Međuosovinski razmak
3098 mm
Težina
2041 kg
Vrata
4
Usporedi
Nissan Primastar
Nissan Primastar
nissan Logo 2021 • 4/J4
Body type
Autobus
Dužina
5080 mm
Širina
1956 mm
Visina
1935 mm
Međuosovinski razmak
3098 mm
Težina
1992 kg
Vrata
4
Usporedi
Maxus Euniq 5
Maxus Euniq 5
2023 • SV5A
Body type
Kombi
Dužina
4825 mm
Širina
1825 mm
Visina
1800 mm
Međuosovinski razmak
2800 mm
Težina
1810 kg
Vrata
5
Usporedi
VW Nutzfahrzeuge ID. Buzz
VW Nutzfahrzeuge ID. Buzz
2022 • EB
Body type
Autobus
Dužina
4712 mm
Širina
1985 mm
Visina
1927 mm
Međuosovinski razmak
2989 mm
Boot capacity
1121 l
Težina
2487 kg
Vrata
5
Usporedi
Ford Kuga
Ford Kuga
ford Logo 2019 • DFK
Body type
SUV
Dužina
4614 mm
Širina
1883 mm
Visina
1661 mm
Međuosovinski razmak
2710 mm
Boot capacity
435 l
Težina
1564 kg
Vrata
5
Usporedi
Toyota RAV4
Toyota RAV4
toyota Logo 2019 • XA5
Body type
SUV
Dužina
4600 mm
Širina
1855 mm
Visina
1685 mm
Međuosovinski razmak
2690 mm
Boot capacity
580 l
Težina
1615 kg
Vrata
5
Usporedi
Mazda CX-30
Mazda CX-30
mazda Logo 2019 • DM
Body type
SUV
Dužina
4395 mm
Širina
1795 mm
Visina
1540 mm
Međuosovinski razmak
2655 mm
Boot capacity
430 l
Težina
1395 kg
Vrata
5
Usporedi
Usporedi sa svim konkurentima

Usporedi s ...

Find the perfect match
Compare your car with other models
Comparing with:
Ford S-MAX (2015)

Test sudara

1. Ukupna ocjena 82%
2. Sigurnost dječjih putnika 87%
3. Sigurnost odraslih putnika 87%
4. Zaštita pješaka 79%
5. Sustavi pomoći u sigurnosti 71%
TOPlist echo ''; // Add smooth scrolling JS for the generations and variants containers echo '';
